Automated 9mm Brass Headstamp Sorting System ECE443-Sp26

By

Ciaran Scheller, Eddie Moroz, Ava Peterson and Carter Ferrazzano

C++
Python
Artificial Intelligence (AI)
3D Printing
Machine Learning (ML)
Automation
Documentation
Spring 2026
Raspberry Pi 5

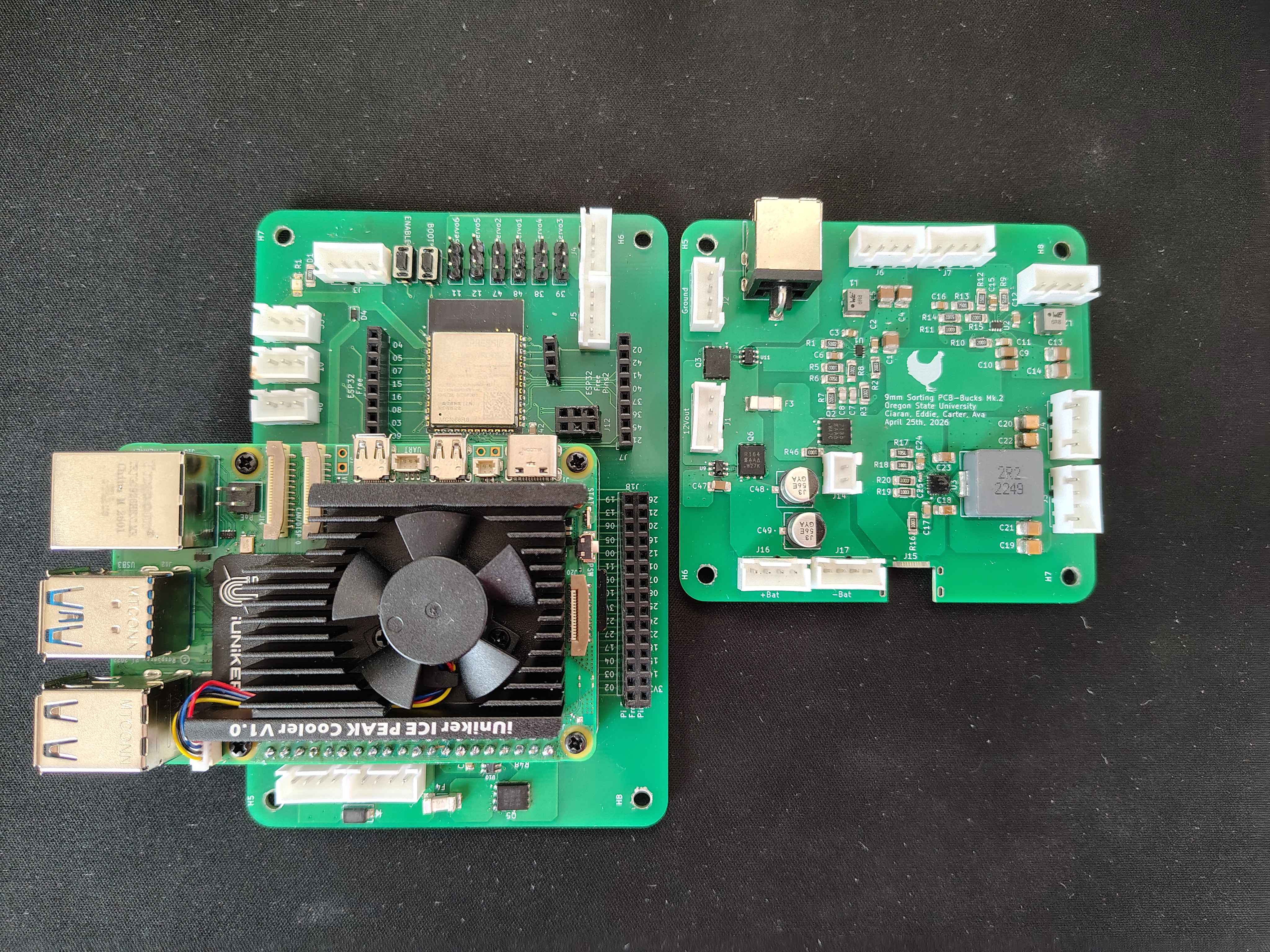

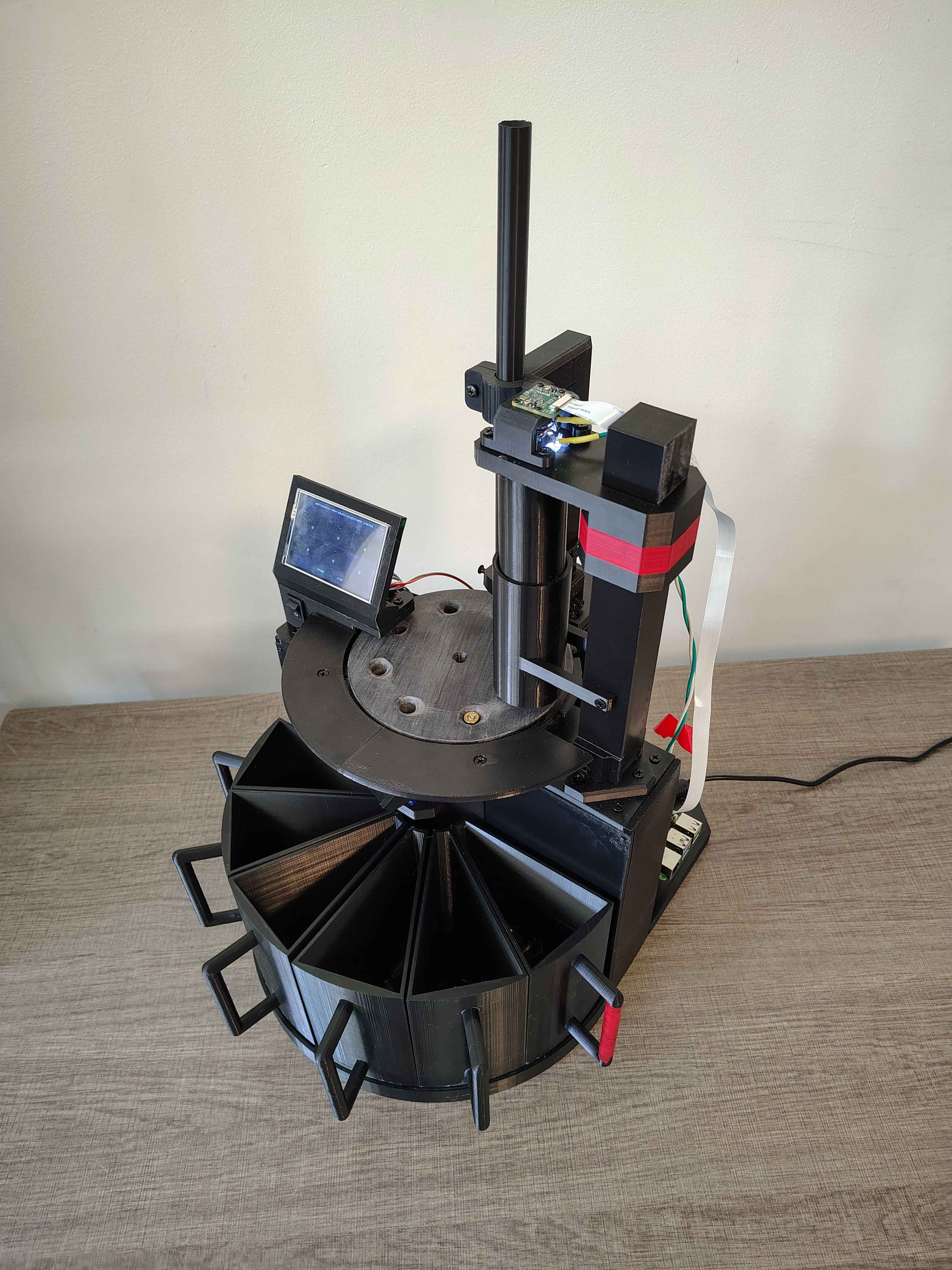

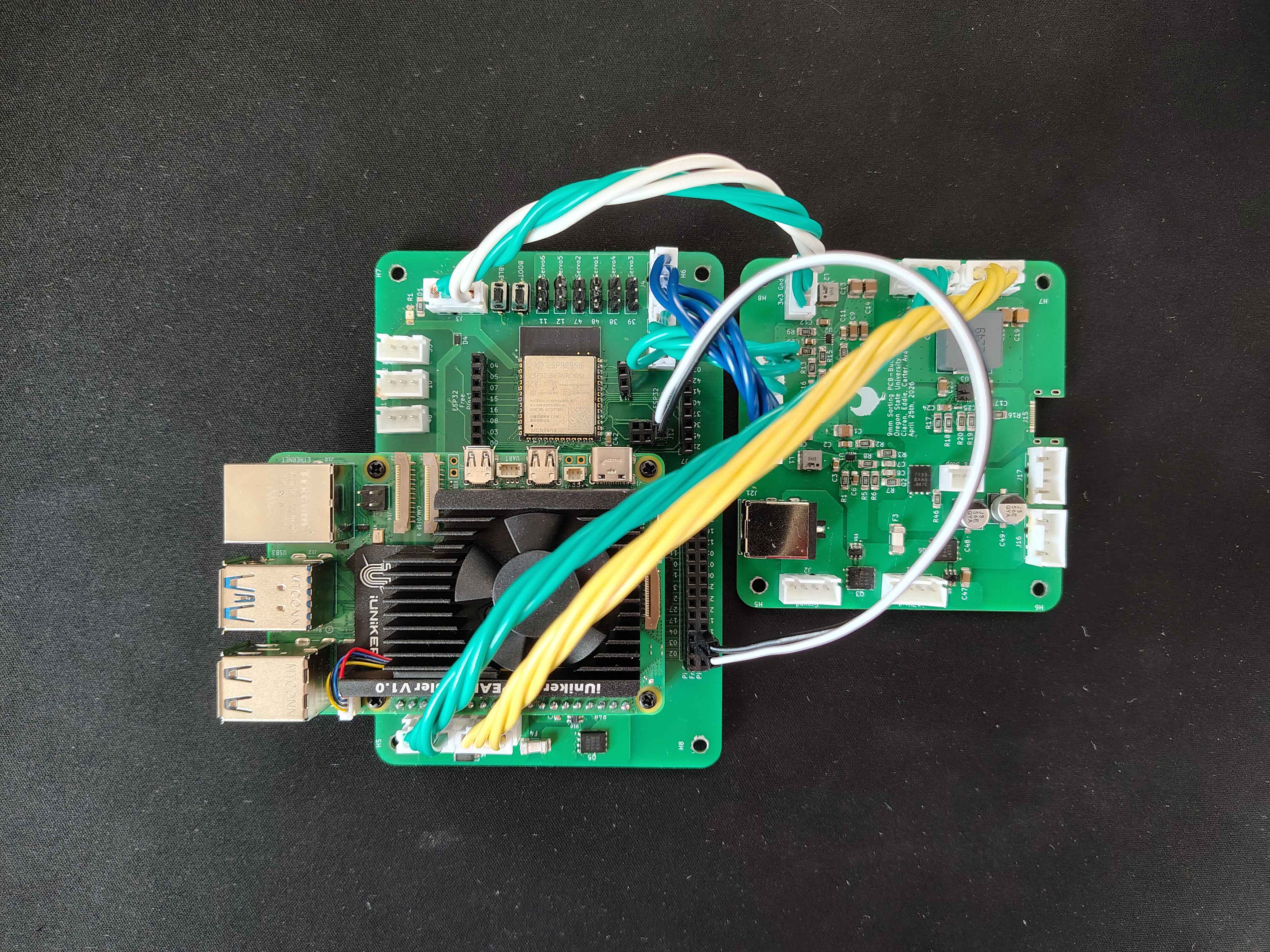

This project is meant to be used by reloading hobbyists to automate the tedious task of sorting 9mm headstamps. To power the system, the power output regulates voltages with buck converters. A camera is used to take a picture of each headstamp which is then passed to a Raspberry Pi 5 that contains a custom trained machine learning model to identify the type of headstamp. The system also allows for user configurable accuracy. The headstamps are moved around the system using FS90R and SG90 servo motors coupled with an optical interruptor to ensure precision. The system is able to sort up to 5 different types of headstamps, each being done in under 8 seconds. On top of this, the system is able to be shut down in case of emergency in under 20 ms. Finally, the system features a system that allows it to swap between being battery powered and taking in power from the wall, depending on the needs of the user. In the future, it would be great to add a system that allows headstamps to be automatically oriented appropriately so that the user does not need to hand feed rounds.

2 Lifts

Artifacts

Name Description
Project Poster This poster presents the design and development of an automated 9mm brass headstamp sorting system. It highlights the system’s hardware, software, processing, and engineering requirements, along with the use of AI and computer vision to accurately identify and sort brass casings. The poster also outlines the team’s design choices, component selection, and individual contributions to the project.   Download
Executive Project Summary This Executive Project Summary goes over the project as whole. It covers the project description and current status, our achievements and challenges, next steps for future development, and includes a basic timeline that contains key milestones.   Download
Showcase Video This video gives a comprehensive overview of the design   Link

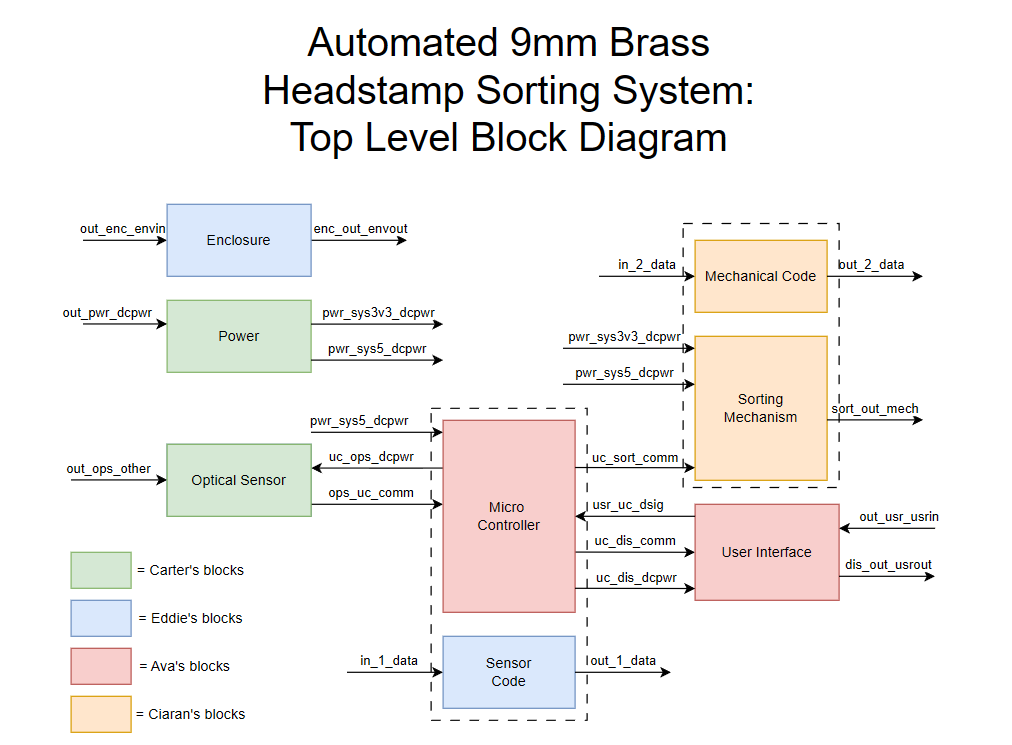

Project Document This document contains all of the information about the project, including an overview of the whole system, along with information for each individual block. It has verifications included of all of the engineering requirements, along with all of the requirements for each separate block.   Download
