DP Adapter w/ Touch & Switch

C
System Design
Soldering
PCB
Visual Studio
Hardware

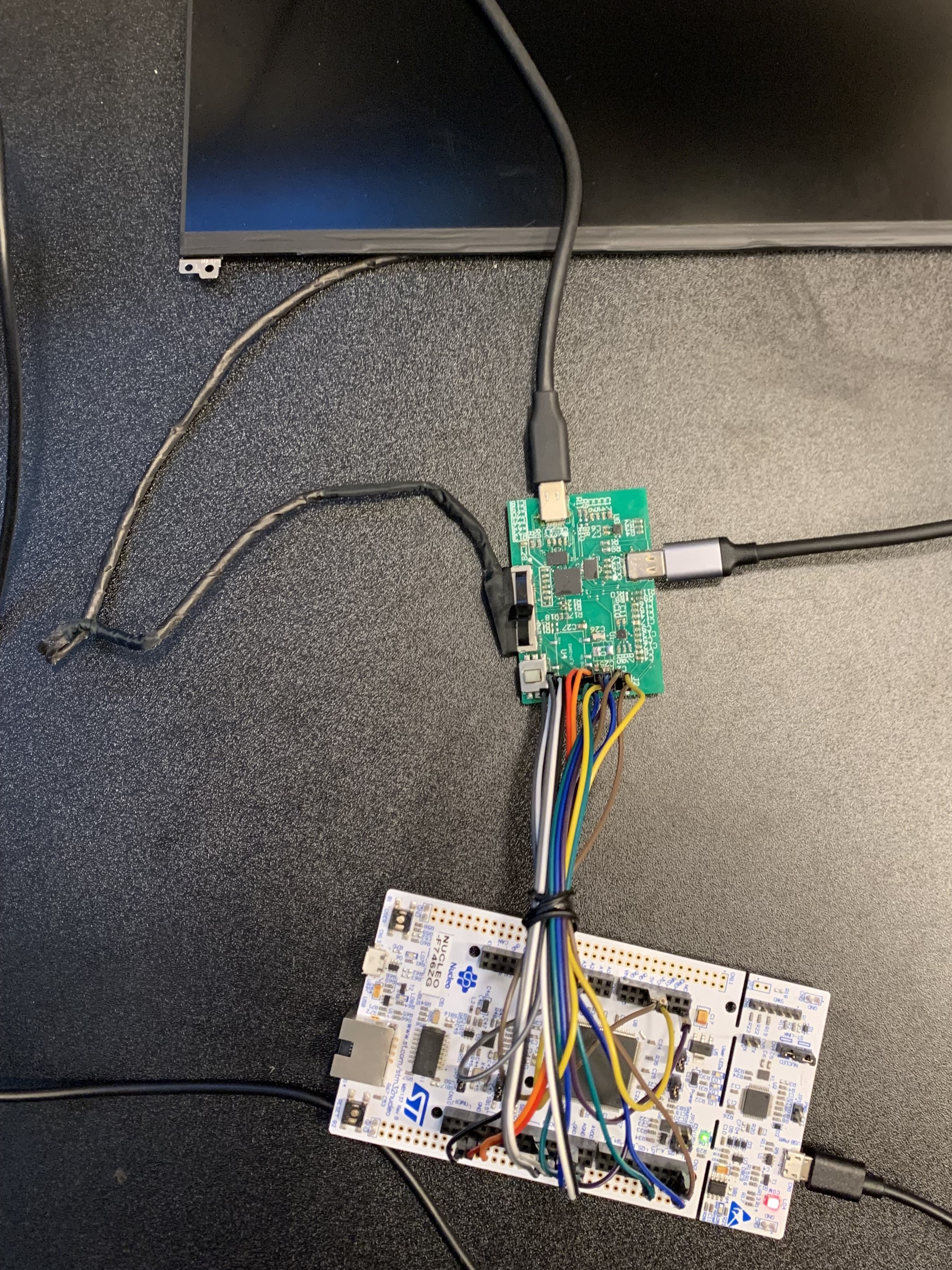

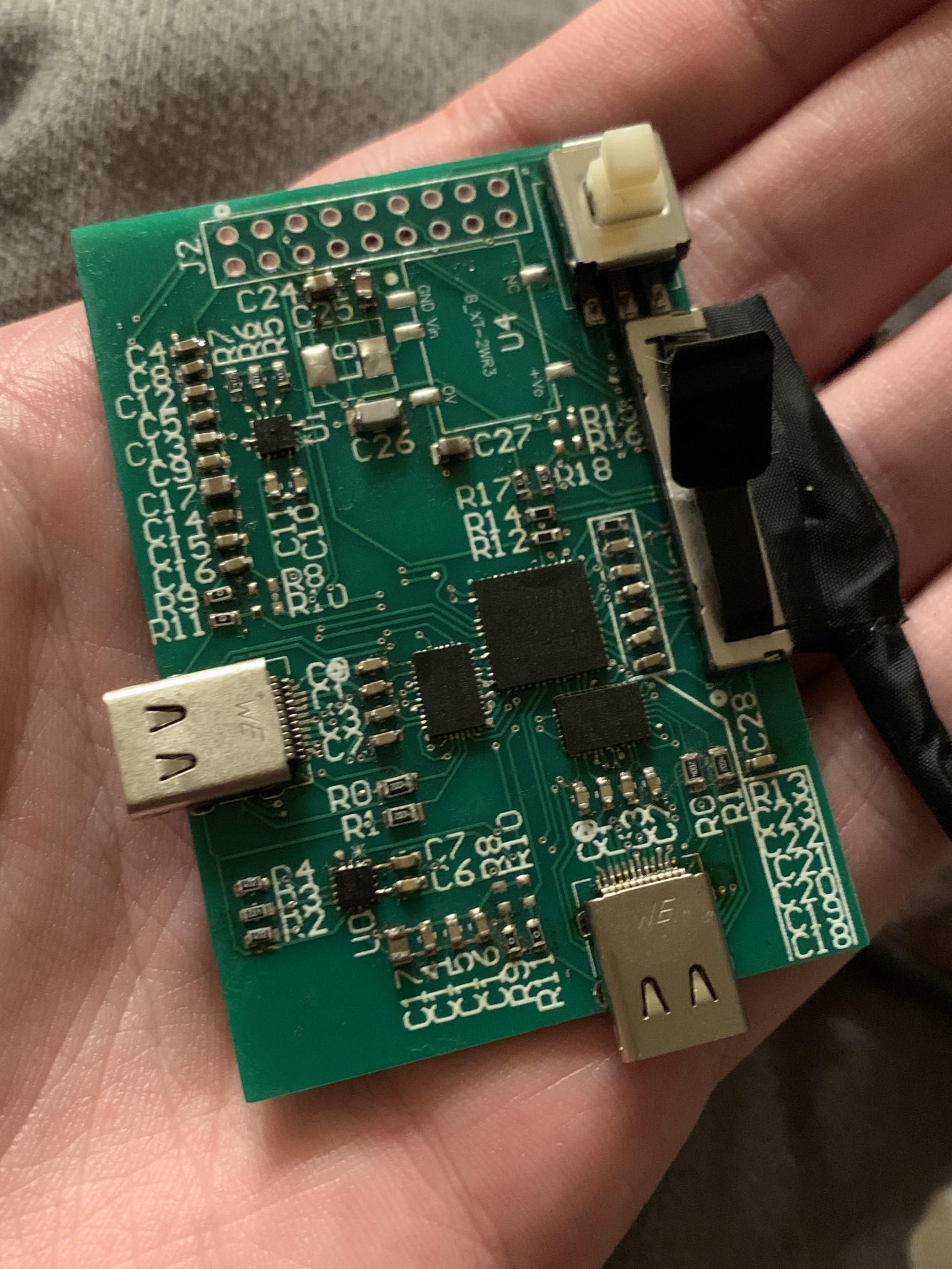

This project is a DisplayPort to embedded DisplayPort adapter with touch integration and input switching. The eDP standard is for laptop displays and other embedded devices. This adapter repurposes a laptop display panel as a monitor for external devices such as other computers. The adapter makes use of USB-C DP Alt Mode for DisplayPort input. Using a type-c controller and USB-C receptacle, it senses USB-C orientation and communicates with host devices to setup a 2-lane DisplayPort configuration. The adapter flips the video signals based on the orientation of USB-C input. Touch integration is also included for touch displays, and passes through the USB-C port as well. The adapter can switch between 2 inputs and is theoretically capable of switching between video inputs up to 4K at 30hz or 3k at 60hz.

0 Lifts

Artifacts

Name Description
Schematics Altium Design schematics including PCB Design Schematic   Download
BOM Bill of Materials Excel Spreadsheet   Download
IC Datasheets The datasheets for the ICs used in design of the DP adapter   Download
Source Code Visual Studio code and STM32CubeMX pinout & clock configuration for microcontroller   Link
Project Report Project description, requirements, design, results report.   Download
