eDNA Sampler Control Board V3

By

Kai Roy

C++
Soldering
Arduino
Embedded Systems
PCB
Research
Open Source
Documentation
Hardware

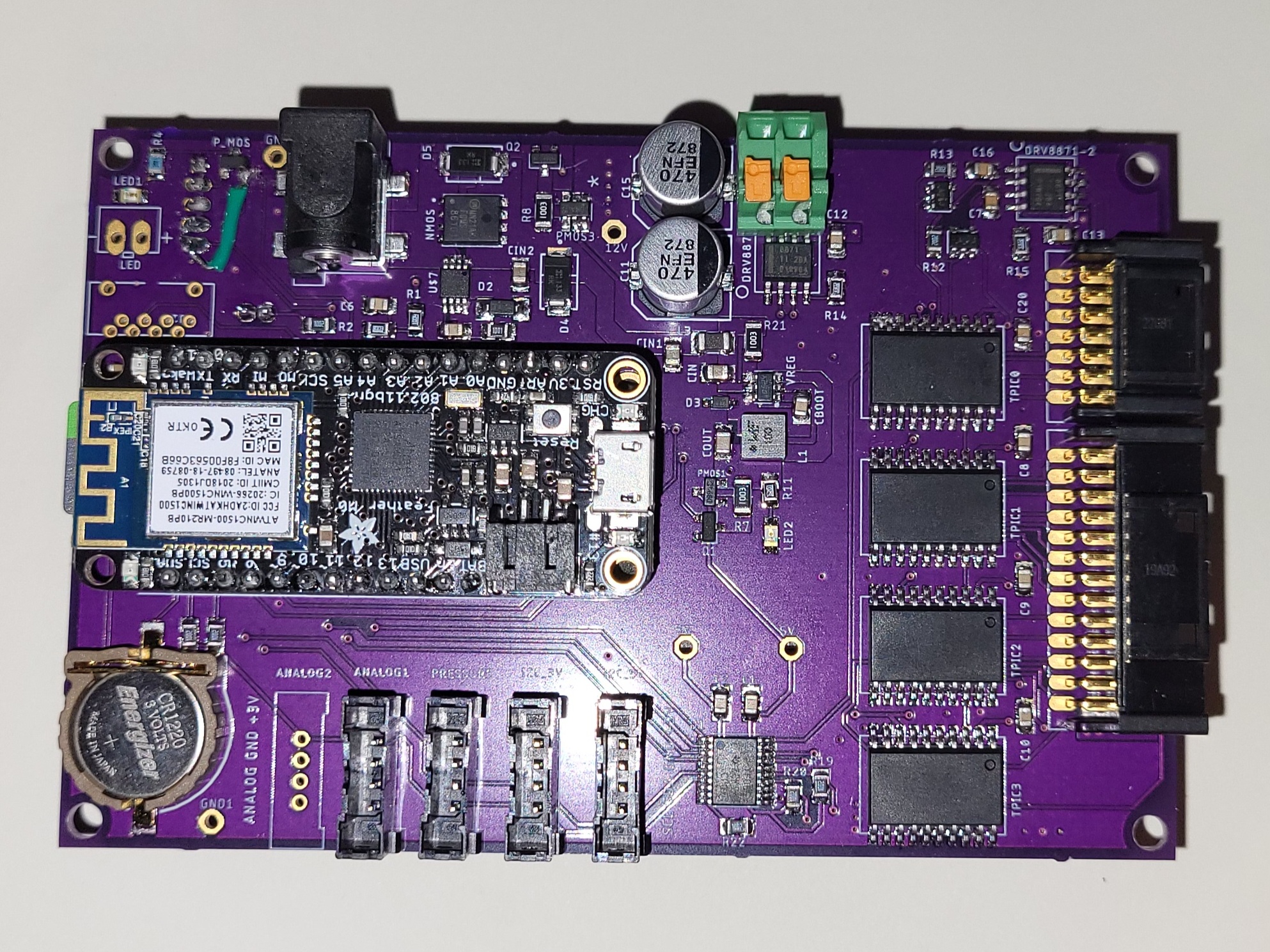

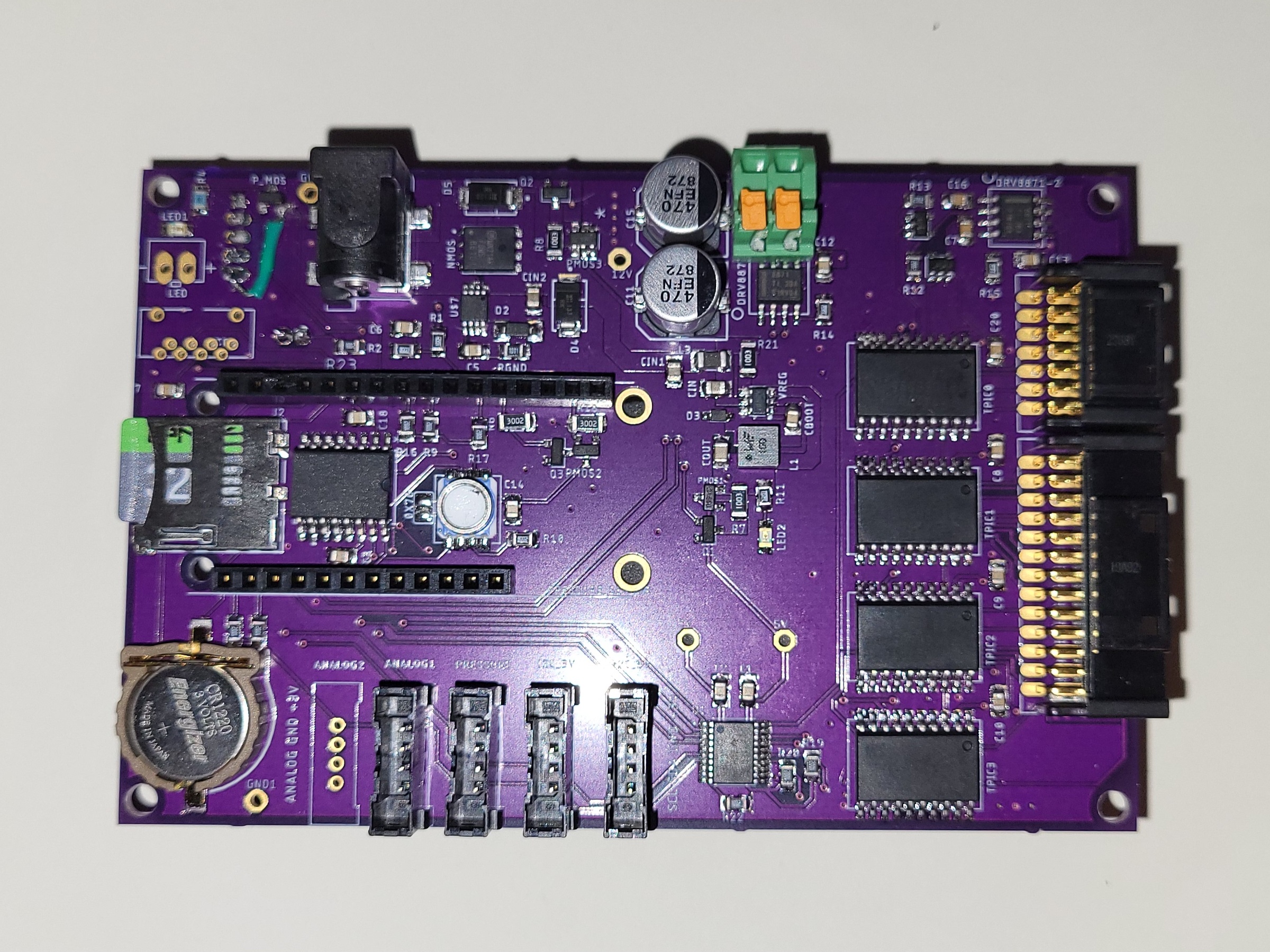

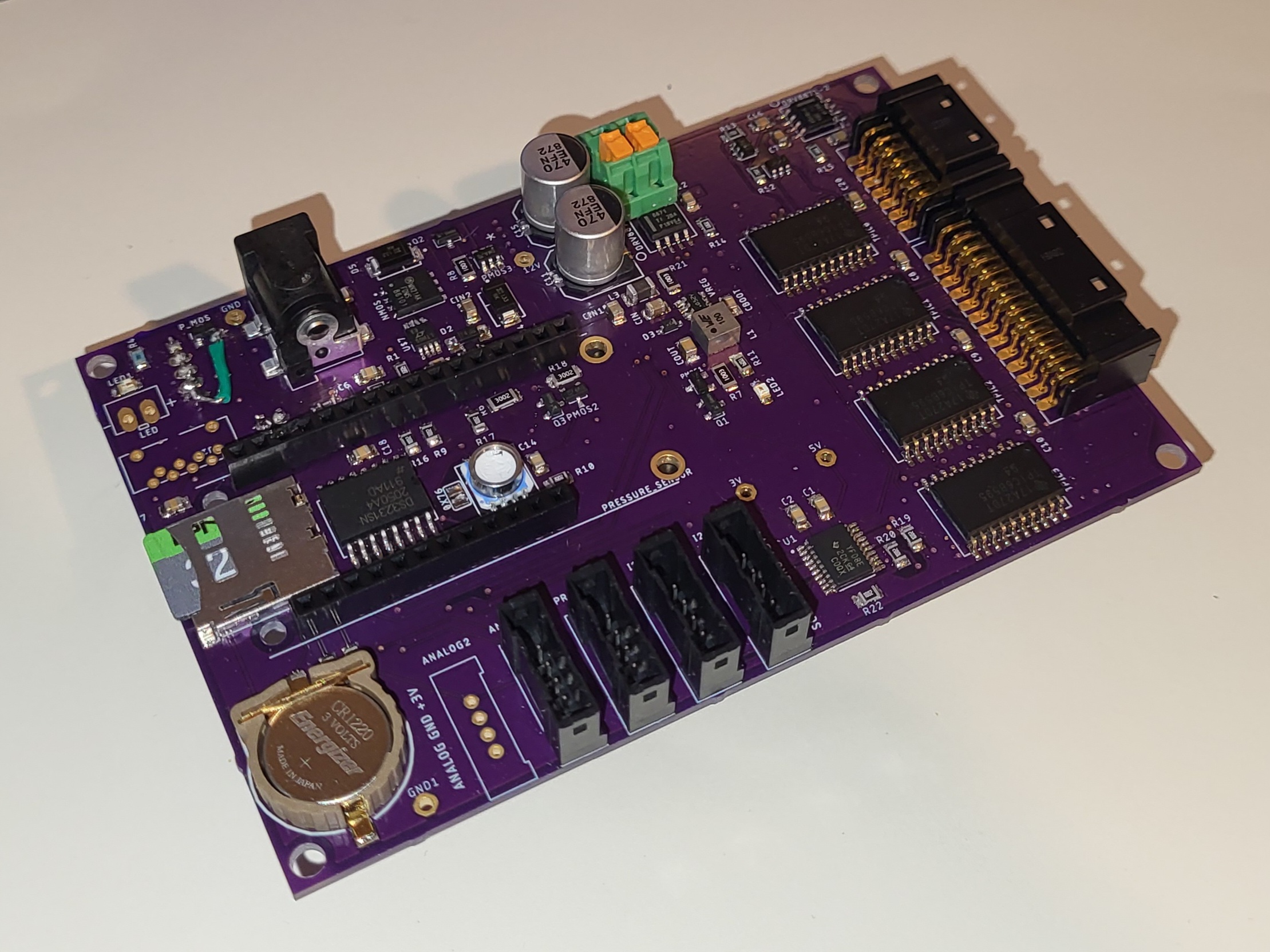

This project aims to redesign the eDNA Sampler Control Board for the OPEnS Lab. Outside of a general redesign of the PCB Layout, 5V I2C Sensor support is being added as well as a complete redesign of the sleep/power management circuit. The problem with the current circuit is it does not allow for easy integration of external interrupts., which could be used to wake the system from a sleep/low power state.

0 Lifts

Artifacts

Name Description
EAGLE EDA Files for the eDNA Control Board V3 The EAGLE Schematic, Board, and Library files for the eDNA Control Board V3.   Download
ECE 406 Final Status Report A short document outlining the project's design and the final status of the project by the end of the Winter 2023 term.   Download
eDNA Control Board V3 Documentation A document explaining the function of each circuit and why certain design choices where made on the schematic and PCB level   Download
