Heart Monitor

By

Grace Mackey

Soldering
Arduino
Research
Problem Solving

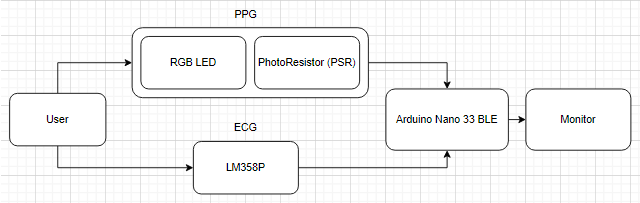

This project aims to design a heart monitor that can keep up with the swift changes in BPM for people with heart conditions like mine. My heart rate changes very rapidly and at random will spike or drop. Most monitors cannot read these sudden changes. My hope is to design and, if time allows, fabricate a monitor that can read data from such an unstable source.

0 Lifts

Artifacts

Name Description
Project Documentation This document shows my progress on this project and my plans for improvement. It should be noted that I will continue to work on this design after the ECE 406 course is over because this project is very important to people like me.   Download
Breadboard of combined PPG and ECG circuit The breadboard shown in this image is essentially by testbench for this project. The last 2 months have been spent trying to get the code to output usable data from my erratic heart rate.   Download
