Bluetooth Headphones

Analog
Embedded Systems
Hardware
Audio
Spring 2025

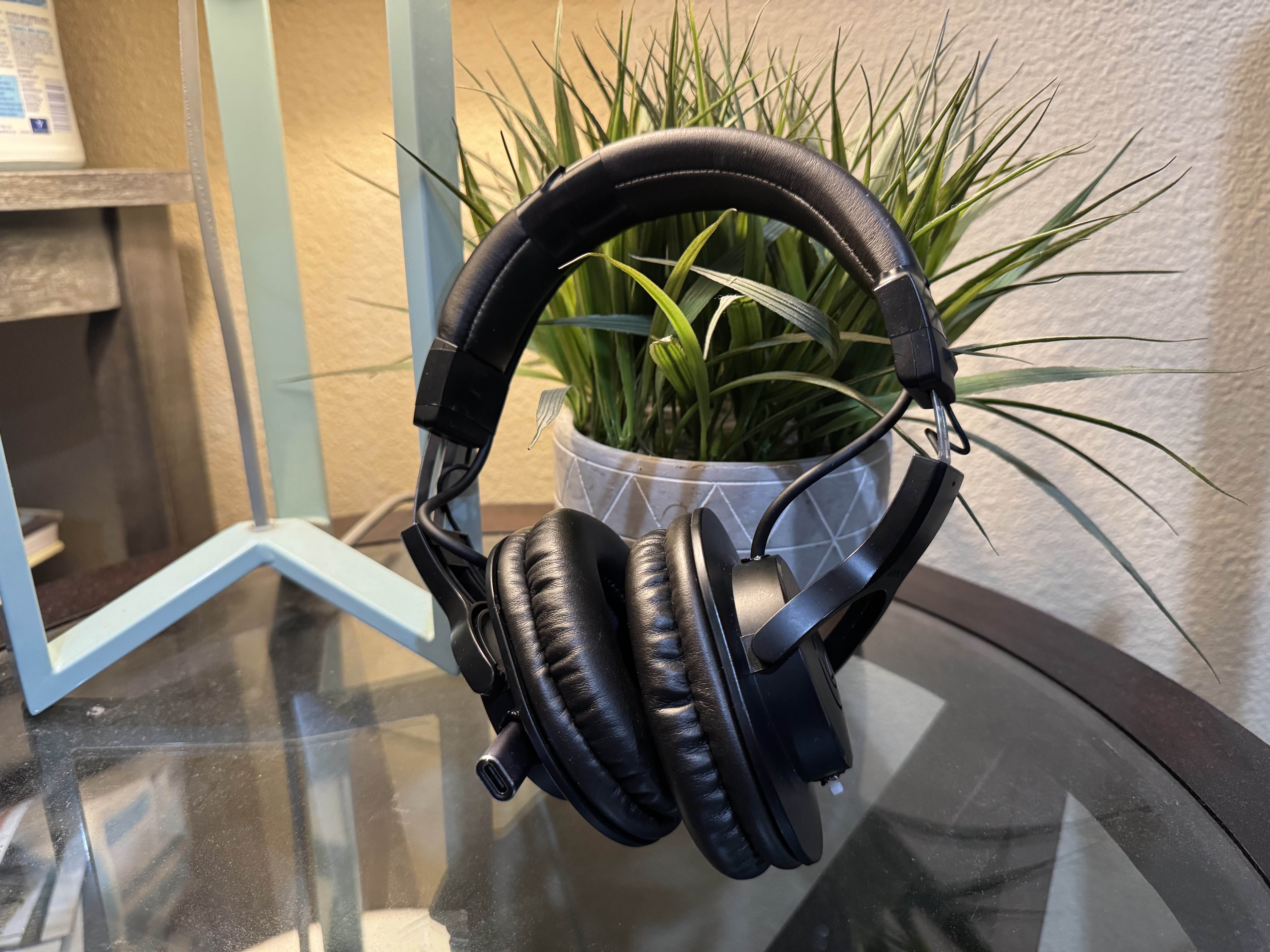

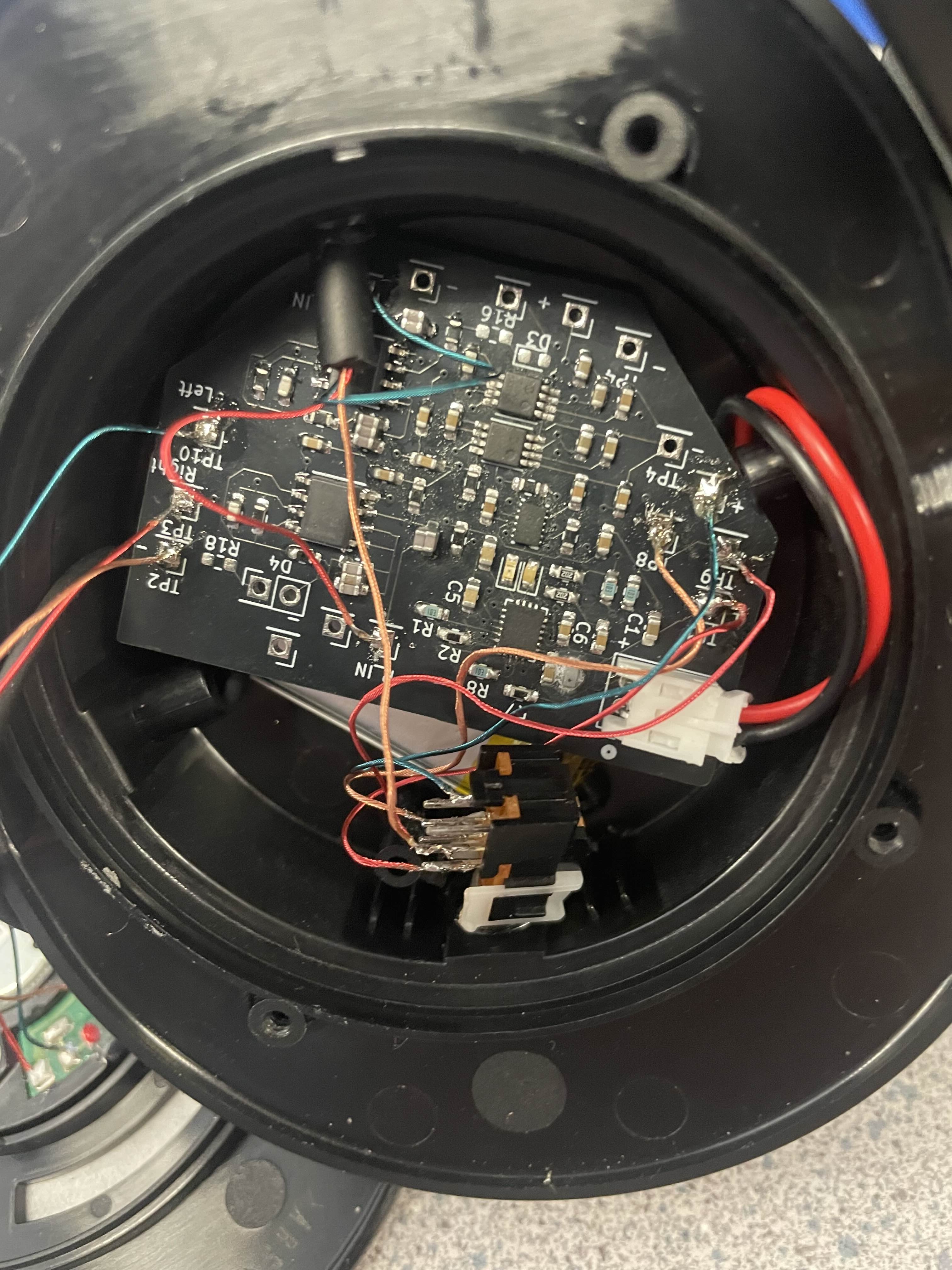

We have designed a pair of Bluetooth headphones intended for everyday use, offering both wireless and wired connectivity. The system is built for users who value high-quality audio, comfort, and the flexibility of USB-C charging and data transfer. It is especially suited for long-term listening, whether for work, commuting, or casual use. The headphones repurpose the original enclosure and drivers from the Audio-Technica ATH-M20x headset, known for their strong audio performance and ergonomic fit. The design integrates Bluetooth communication, USB-C charging, data lines, and a reliable internal battery system to support long playtime. One of our biggest accomplishments was successfully adding new technology into the reused headphone housing without losing sound quality or comfort. One challenge we faced was fitting all the parts and routing power and signal lines in a small space.

2 Lifts

Artifacts

Name Description
System Github This is a link to the system GitHub repository, which contains schematic files, PCB files, code, and system testing.   Link
Project Document This document contains all relevant information about our project, including design details, components used, and system functionality.   Link
Executive Summary Executive summary (contained in the project document as well).   Download
Project Show Case Video This is the project Showcase Video!   Link
