PC Controlled DC Power Supply ECE342-W24

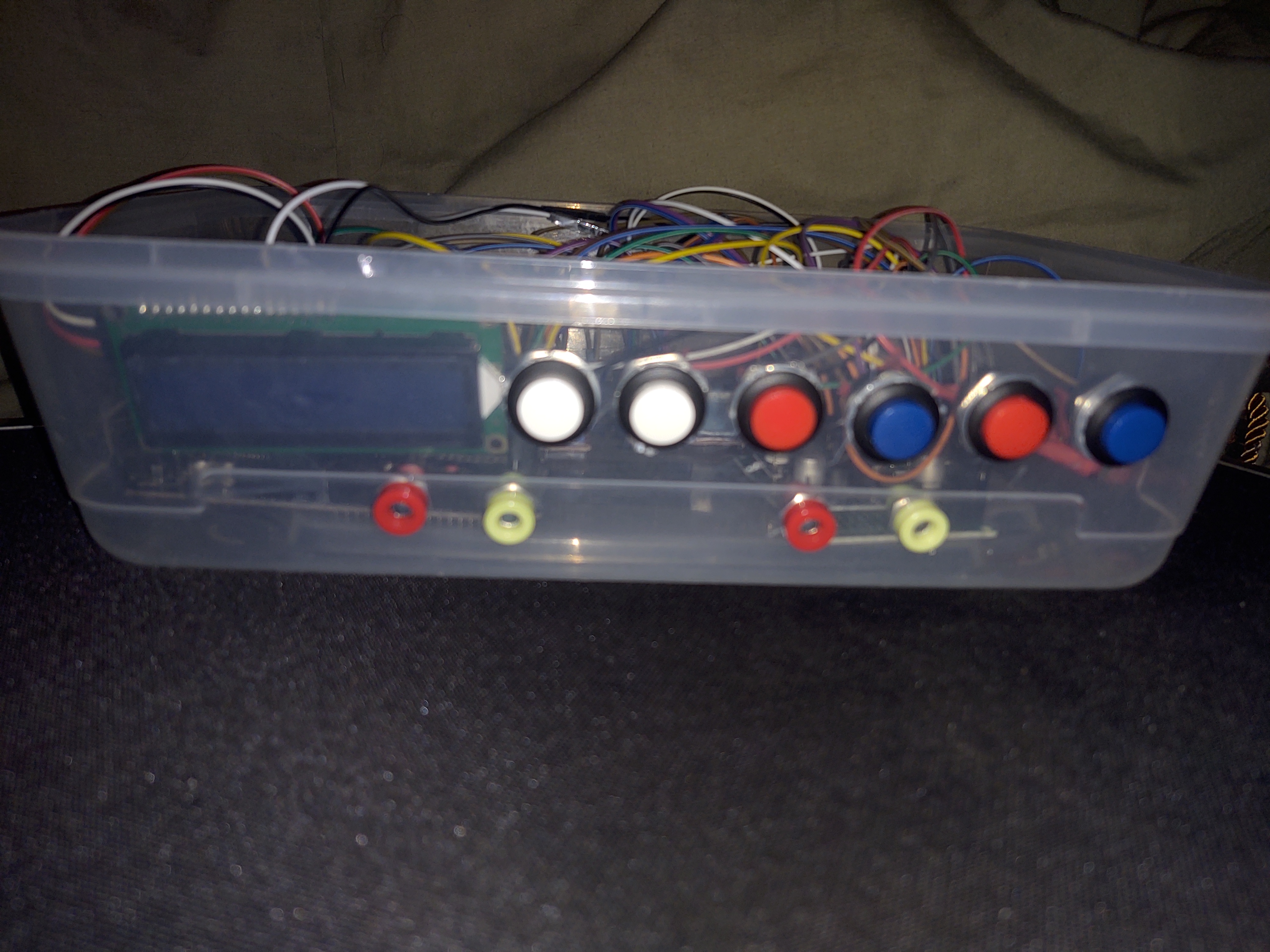

This system is a PC controlled power supply which takes in user inputs through a USB connection and outputs 2-14 volts on two separate channels. These outputs are set independently from one another. The microcontroller receives the signal from the PC and sets the output voltages through multiple buck converters and regulates the output through the use of a voltage regulator. The output voltages and currents are measured and sent to the LCD display through the microcontroller. The main limitation with this system is our voltage increment size. With some revisions, it would be possible to allow for even more precise voltage control on the output channels.

0 Lifts

Artifacts

Name Description
Project Summary Single Page PDF detailing the project and some information on how we approached it.   Download
Showcase Video Video Showcasing Different Parts of our Design   Link
