PowerSig Mini

By

Juan Saucedo and Louis Ahumada Medina

3D Printing
Analog
System Design
Soldering
PCB
Enclosure

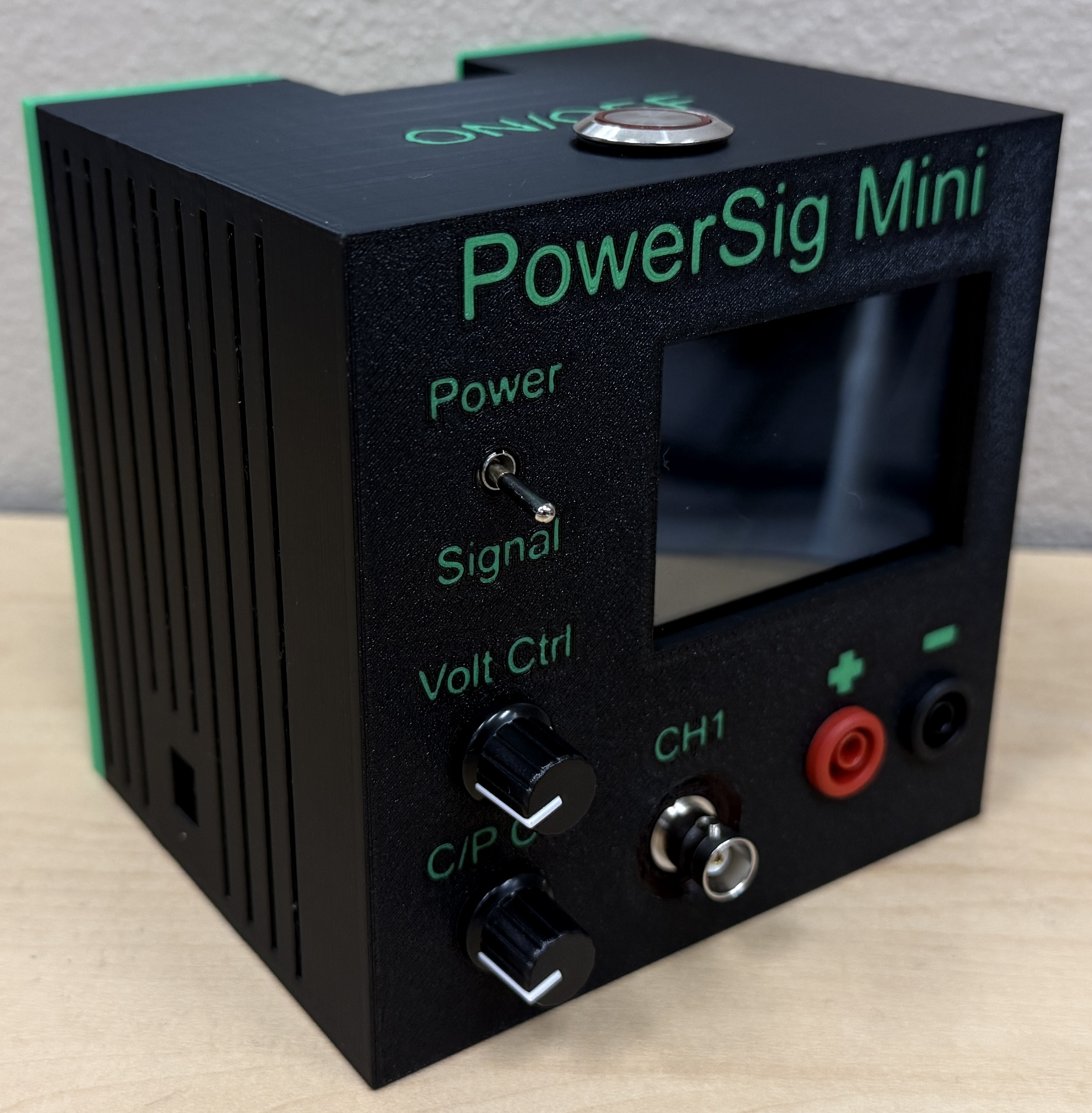

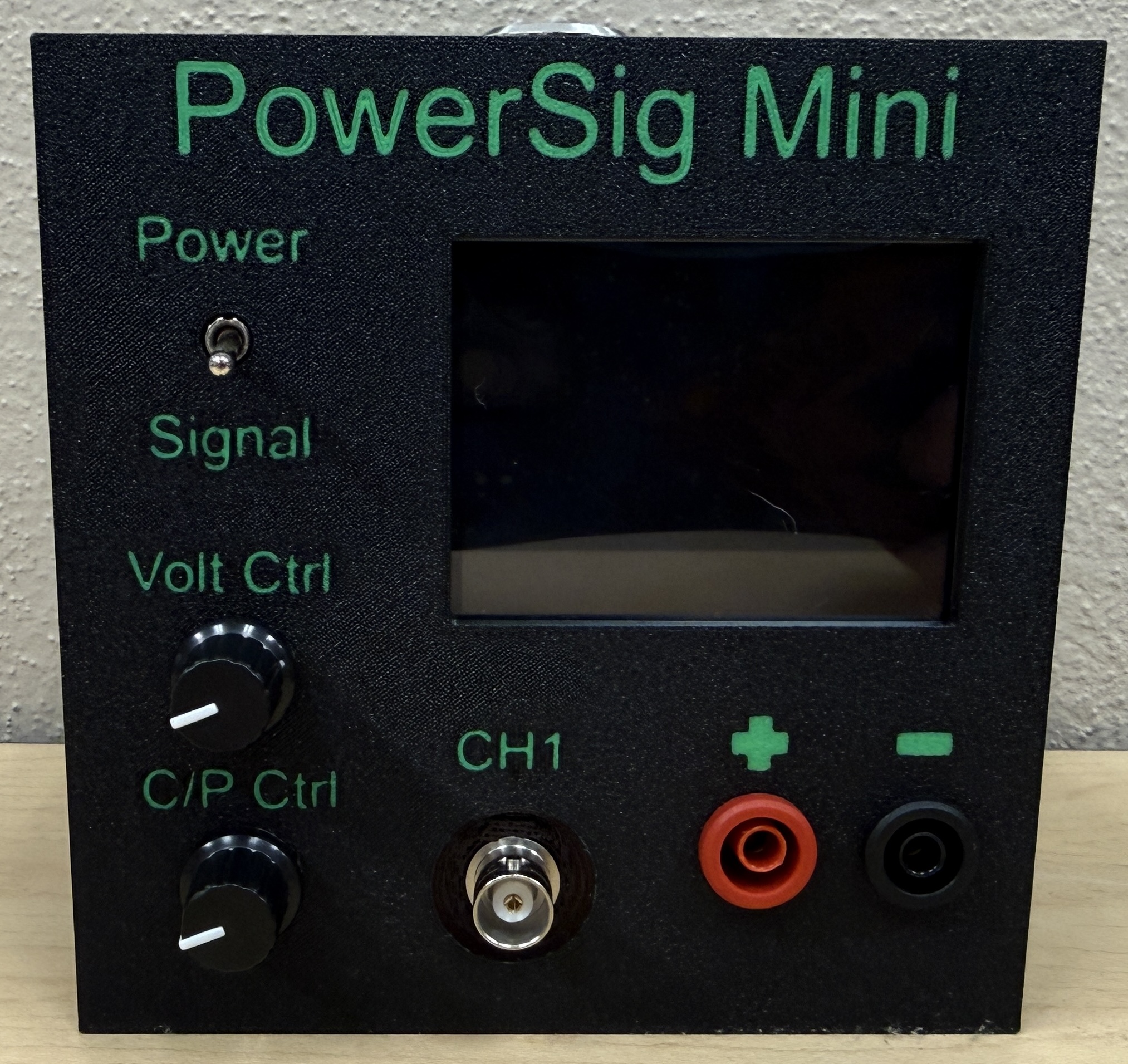

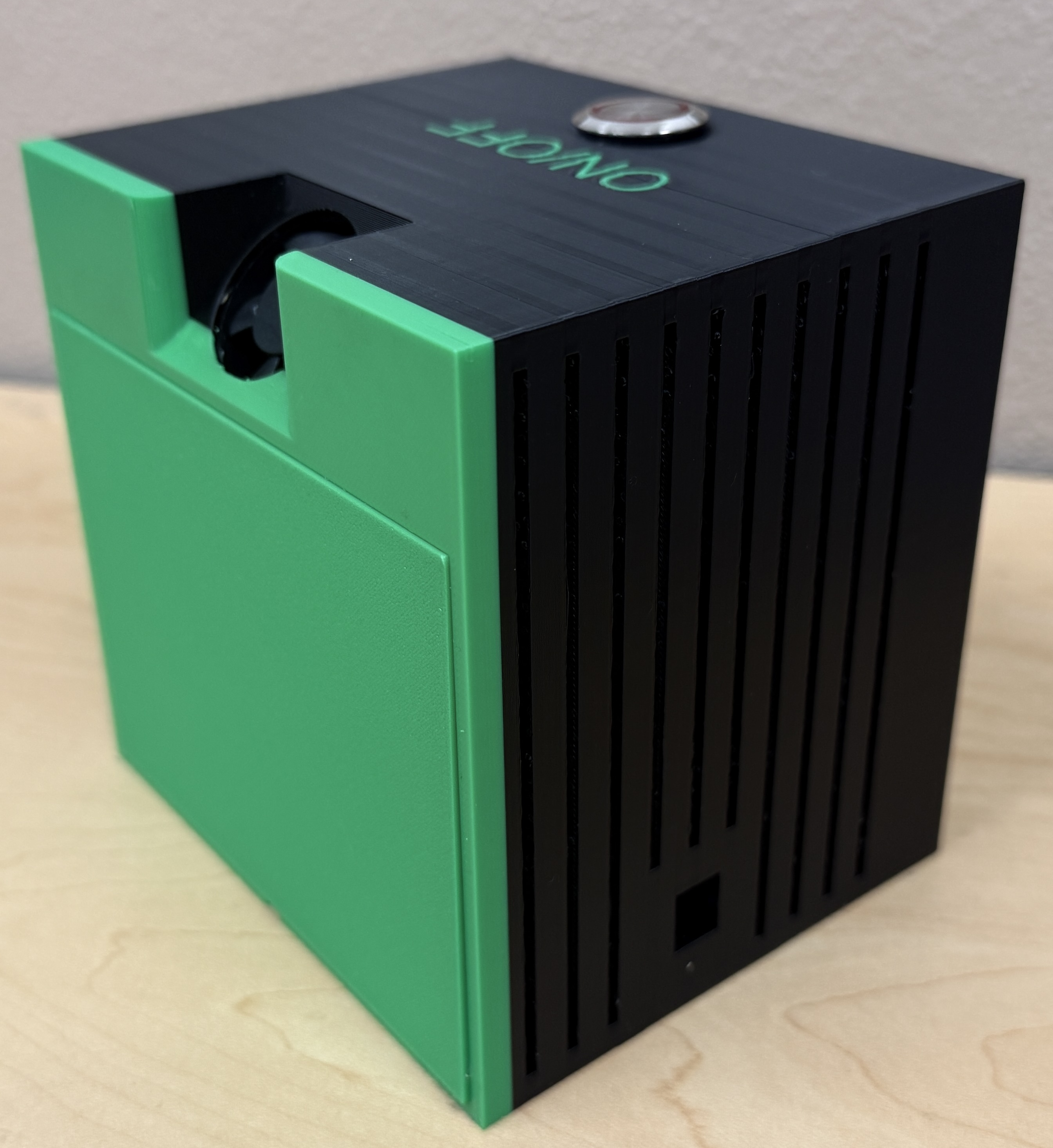

The PowerSig Mini is a compact power supply and signal generator in one device. This device contains an adjustable DC voltage regulator and an adjustable square wave generator feature. The voltage and square wave period are adjustable by the user. The built in local display will show relevant information to the user. The device can output a max limit of 20VDC(+-5%). The device's square wave output frequency has a range of 60Hz to 2KHz. Engineering Requirements: 1) The system shall be no bigger than 150 cubic inches. 2) The system's output shall not exceed 3 Amps(+- 5%). 3) The system's output shall not exceed 20 VDC(+- 5%). 4) The system's output's square wave shall at least have a 10ms period. Engineering Requirements Results: 1) Met Requirement 2) Did Not Meet Requirement 3) Met Requirement 4) Met Requirement

0 Lifts

Artifacts

Name Description
System Layout Diagram This diagram shows how the various components in the system are connected.   Download
General System Layout Diagram Interface Table This table gives a general explanation of the various wires in the System Layout Diagram.   Download

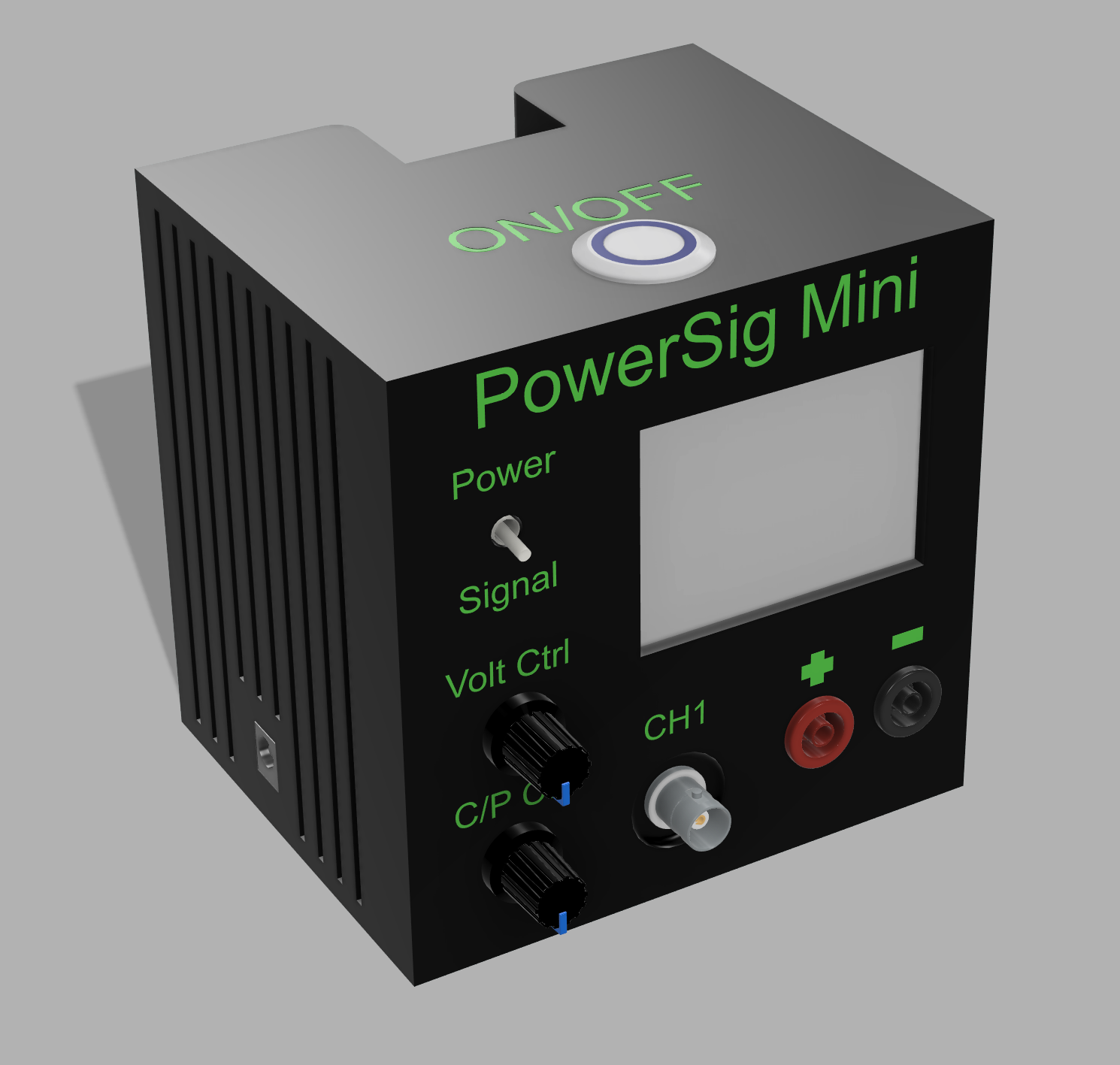

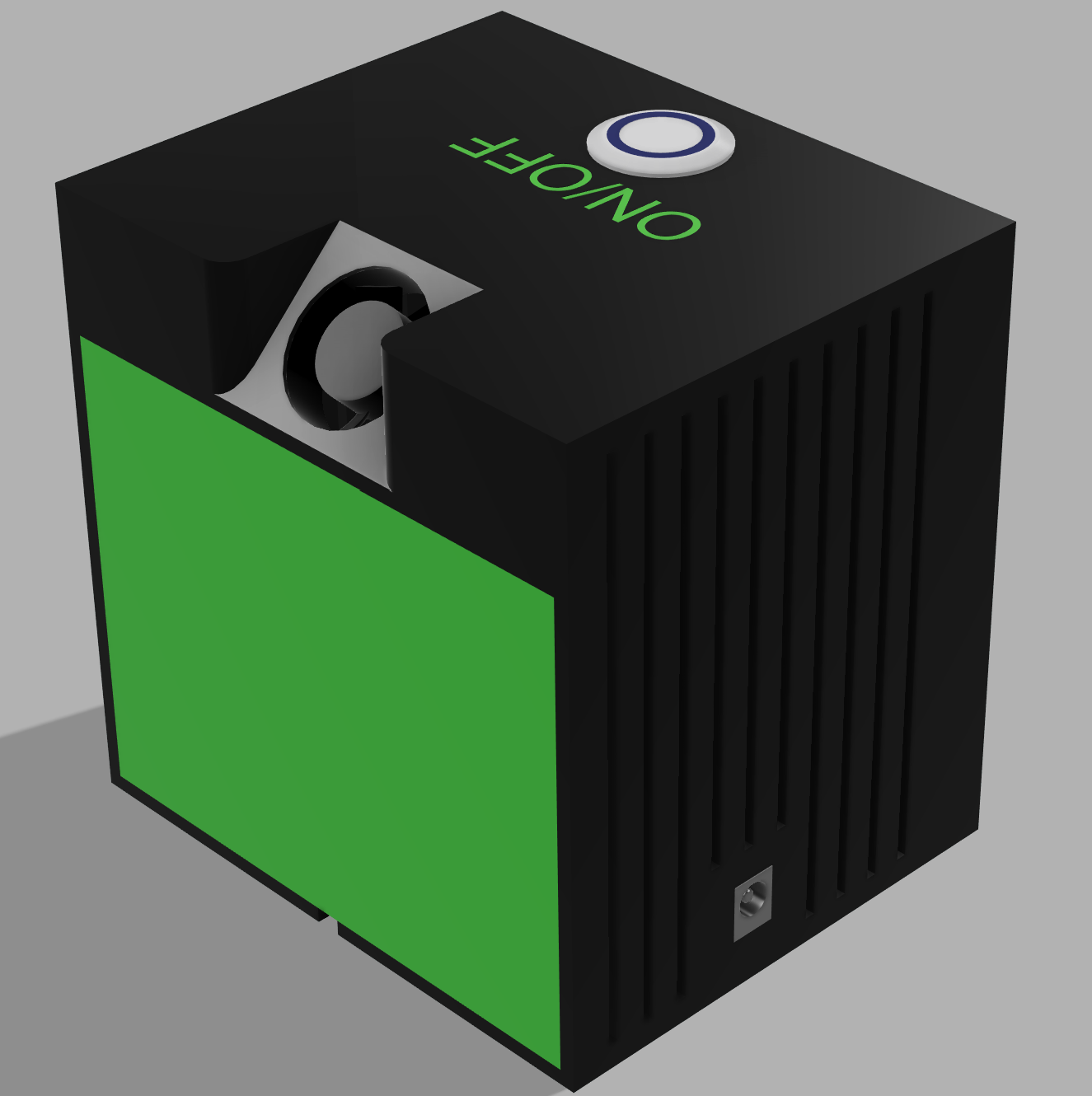

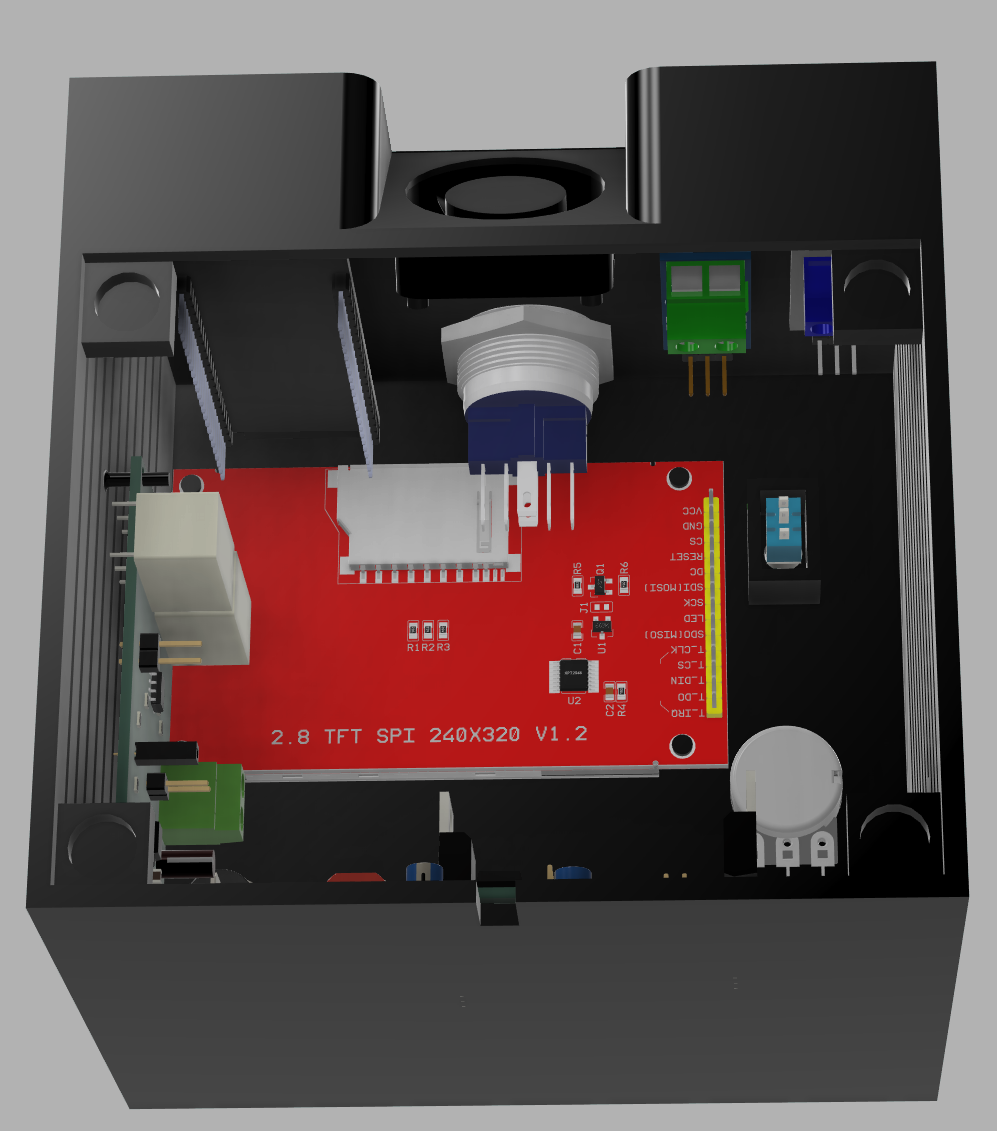

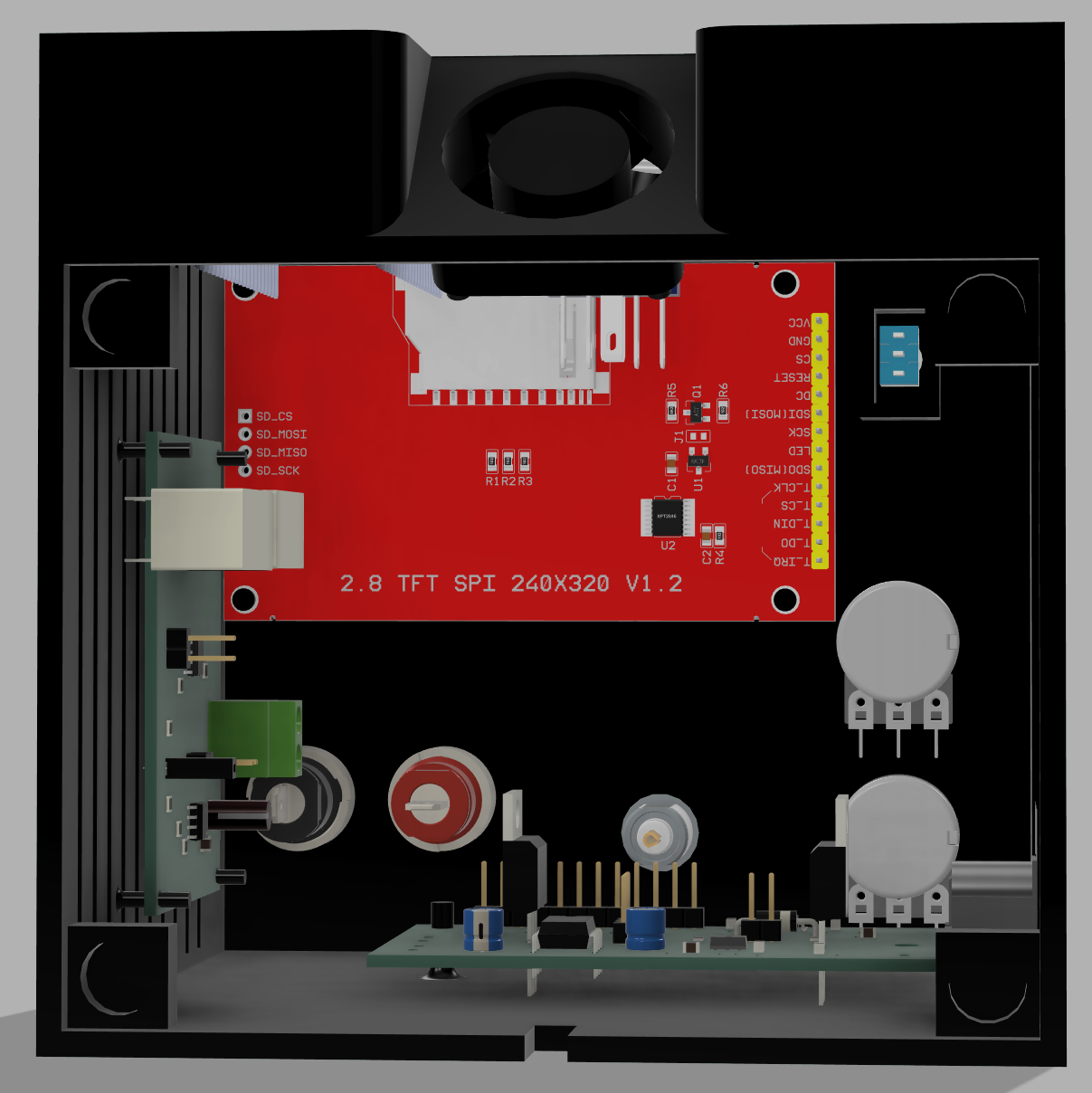

3D Model This file is a 3D Model(.step) of the assembled system without wiring.   Link
Engineering Requirement One Proof This file demonstrates the system meeting engineering requirement number 1.   Download
KiCad Power PCB PCB for voltage regulator and current limiter (Rev. 1).   Download
Microcontroller Code This file is the Arduino Ide code used to program the microcontroller for the system.   Download
Power PCB Simulation Used falstad website (https://falstad.com/circuit/) to simulate the circuit for the Power PCB. Use the provided text file and open it in the simulator.   Download
KiCad General Layout Schematic This KiCad project file has the schematic for the rest of the system that is not included in the KiCad Power PCB.   Download
Signal Generator Simulation Used falstad website (https://falstad.com/circuit/) to simulate the circuit for the Signal Generator. Use the provided text file and import into the simulator.   Download
Engineering Requirement Three and Four Proof This video demonstrates the system meeting engineering requirement number 3 & 4.   Link
