OSURC Mars Rover Science Node (2018-2019)

By

Trevor Murphy

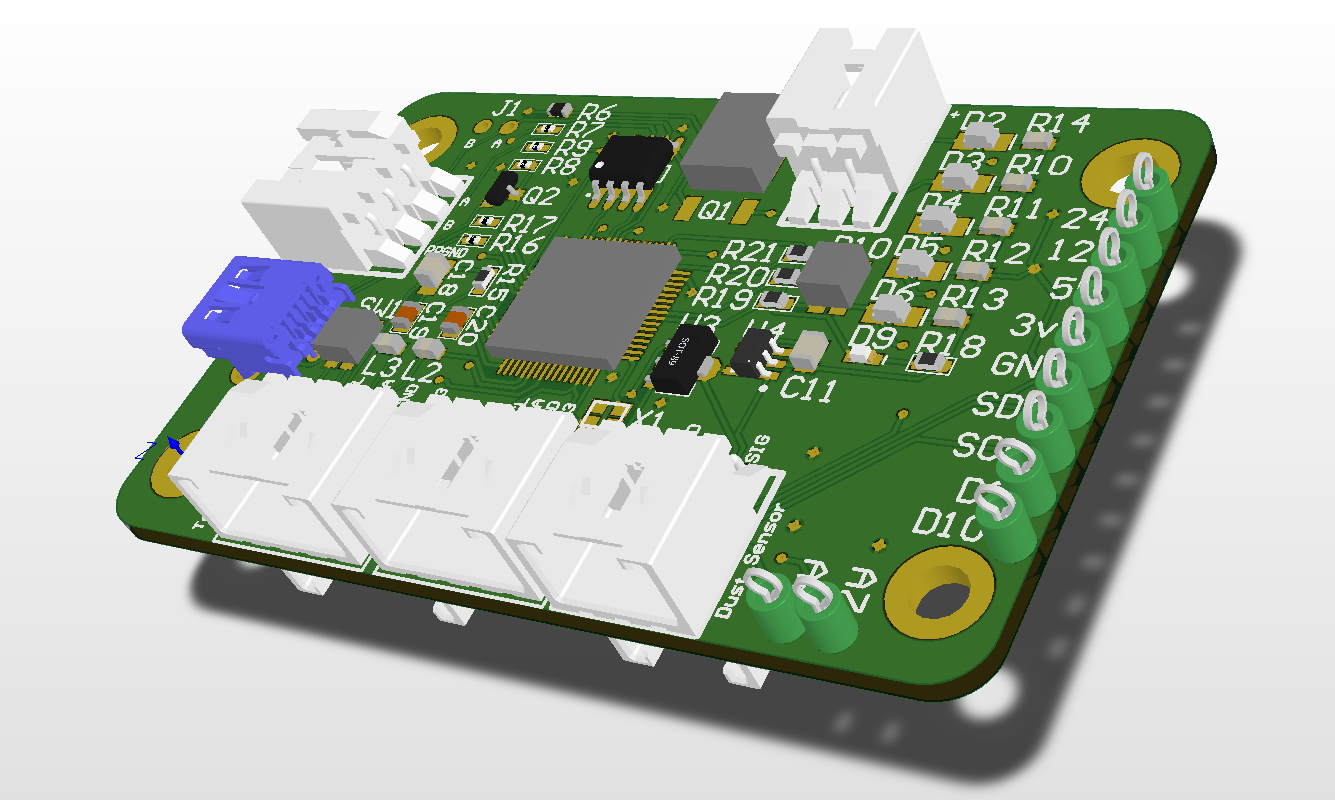

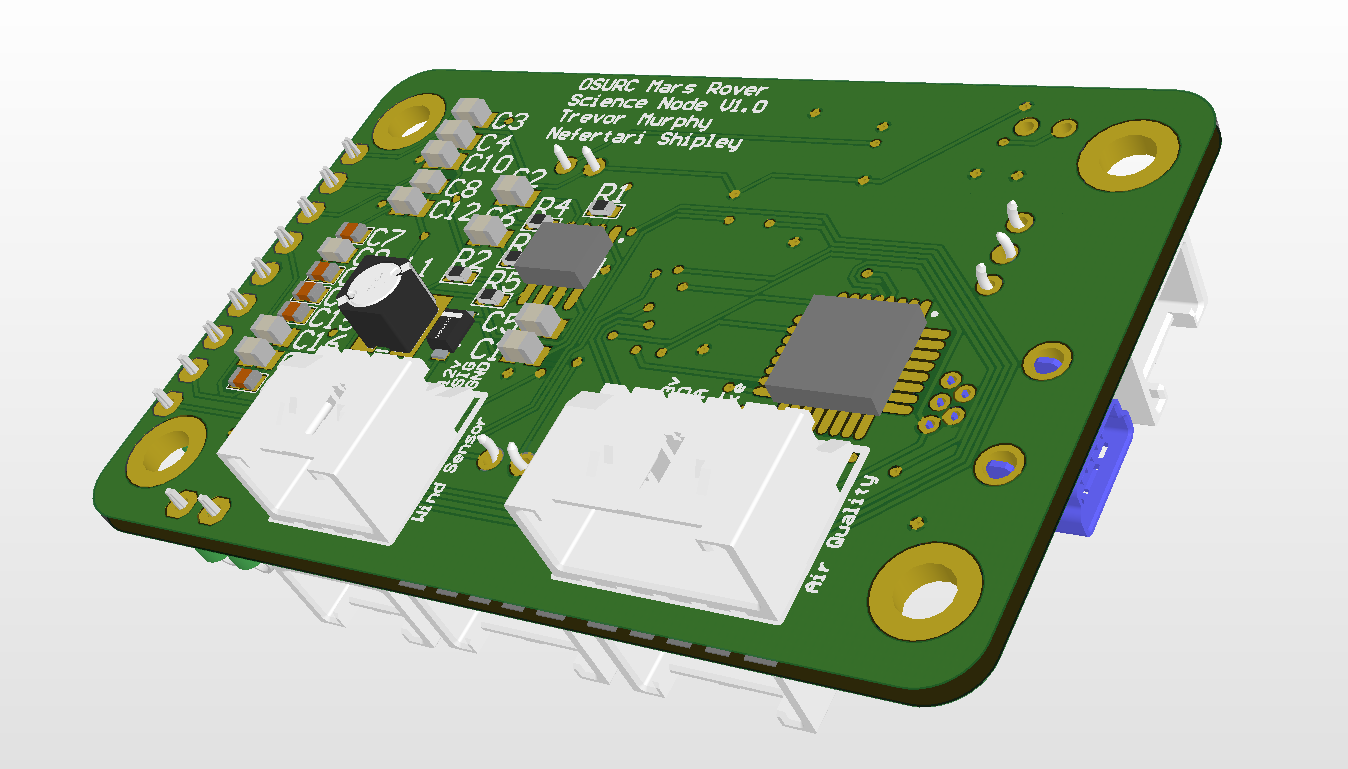

The Mars Rover Science Node is a multifunctional system that allows the Rover to take atmospheric measurements from a wind, dust, air quality, temperature, humidity, and UV sensor and send them back to the on board computer for later analysis by the science team.

0 Lifts

Artifacts

Name Description
Board Schematics These are the schematics that were designed in Altium CircuitMaker for use in developing the PCB. These schematics were developed with input from the science team based on what sensors were needed.   Download
Bill or Materials These are all the purchased components for each element on the board. This also includes the initial purchase amounts and what the total cost is per board.   Download
Firmware Arduino firmware written for the board for functionality with the system.   Download
