Mini Sumo Robot

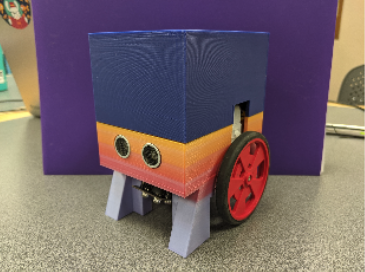

Worked in a team of 4 to design an automated Mini Sumo robot. This robot could find a block and push it off a small battlefield. I design a battery level indicator PCB to go with this project. I also designed the enclosure and the chassis for the robot in Solidworks. I 3D printed several prototypes to perfect the design.

0 Lifts

Artifacts

Name Description
PCB Design This is the final PCB Design. It is designed to be mounted to the top of a 10cm x 10cm enclosure   Download
Chassis/Enclosure Design This is the final design for the chassis and enclosure in solid works. One of the requirements for this project was to have the bot stay within the size restriction of 10cm x 10cm.   Download
