ECE443-Sp26 BPA Testing Equipment

ESP32
Spring 2026
BPA
SCADA
Zigbee
Charging

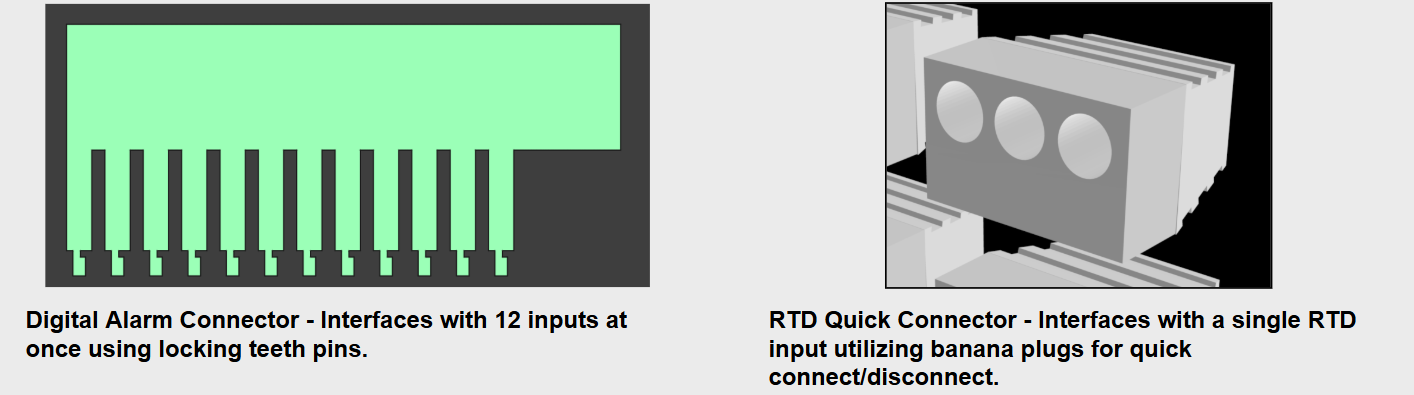

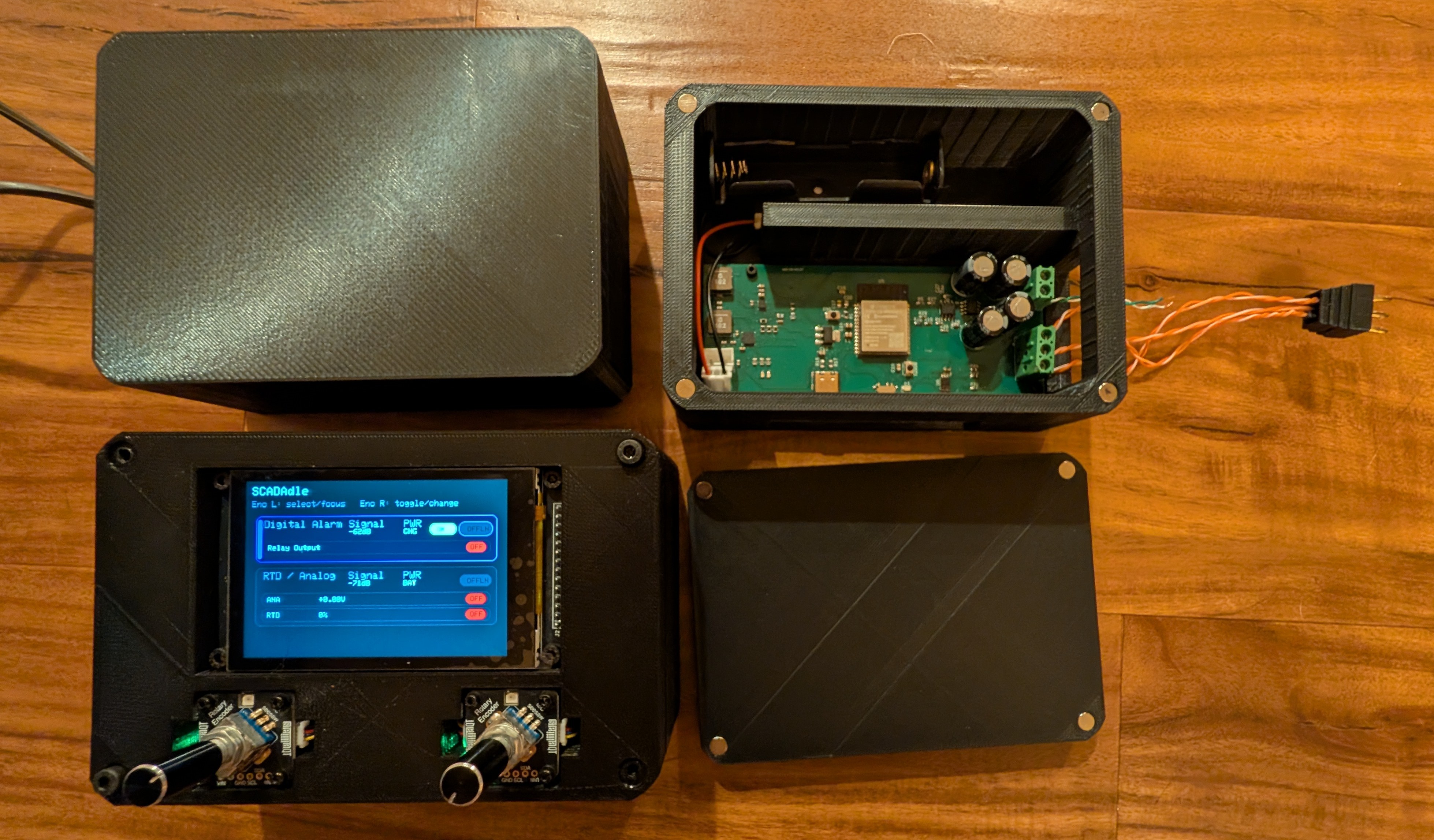

SCADAdle is a portable SCADA testing device built for the Bonneville Power Administration to simulate multiple signal types simultaneously, replacing their existing single-input testing process. It uses an ESP32-C6 microcontroller with Zigbee wireless communication to coordinate modular input units, covering RTD, analog, and digital alarm outputs, all powered by a rechargeable battery system and controlled through a handheld LCD remote. The team successfully delivered a working, fully wireless multi-input test system, though future work should address a short in the power delivery PCB and parasitic power draw from certain components when the system is off.

1 Lifts

Artifacts

Name Description
Project Poster SCADAdle Poster   Download
Executive Summary Project overview   Download
Project Document Full documentation on the SCADAdle project.   Download
