Robot Maze Design

By

Don Heer and Nicholas Johansen

Robotics
Hardware

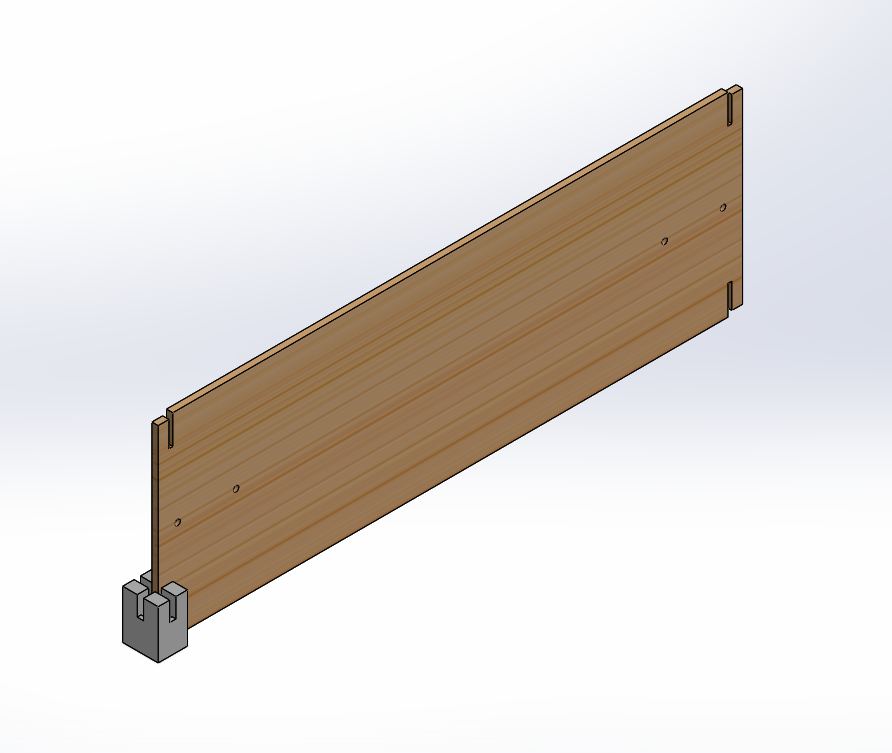

For our ECE Freshman Orientation we needed a reconfigurable maze for robots of up to 15cm in diameter. The commercially available options were either expensive or not of high enough quality to survive student use. We designed a combination of laser cut 3.2mm plywood and 3D printed brackets to use for this maze.

1 Lifts

Artifacts

Name Description
Maze Corner Block This stl is ready to print, units are mm.   Download
Solidworks Design This is the Solidworks file for both the wall and bracket components.   Download
Maze Bracket This dxf file is ready for laser cutting. Units are in mm. The material to be cut needs to be nominally 3.2mm thick to match the Maze Brackets.   Download
Maze Wall This dxf file is ready for laser cutting. Units are in mm. The material to be cut needs to be nominally 3.2mm thick to match the Maze Brackets   Download
