Junior Project - PC controlled Adjustable DC Power Supply

By

Alhusam Al Harthy, Tianbao Yan and Ian Brysen Pagatpatan

We designed a DC power supply that the output voltage can be adjusted from 2V to 14V with the output current up to 1.5A.

0 Lifts

Artifacts

Name Description
Expo Poster The poster of PC controlled DC power supply   Link
Top-Level Diagram Top-Level Diagram of the power supply   Link

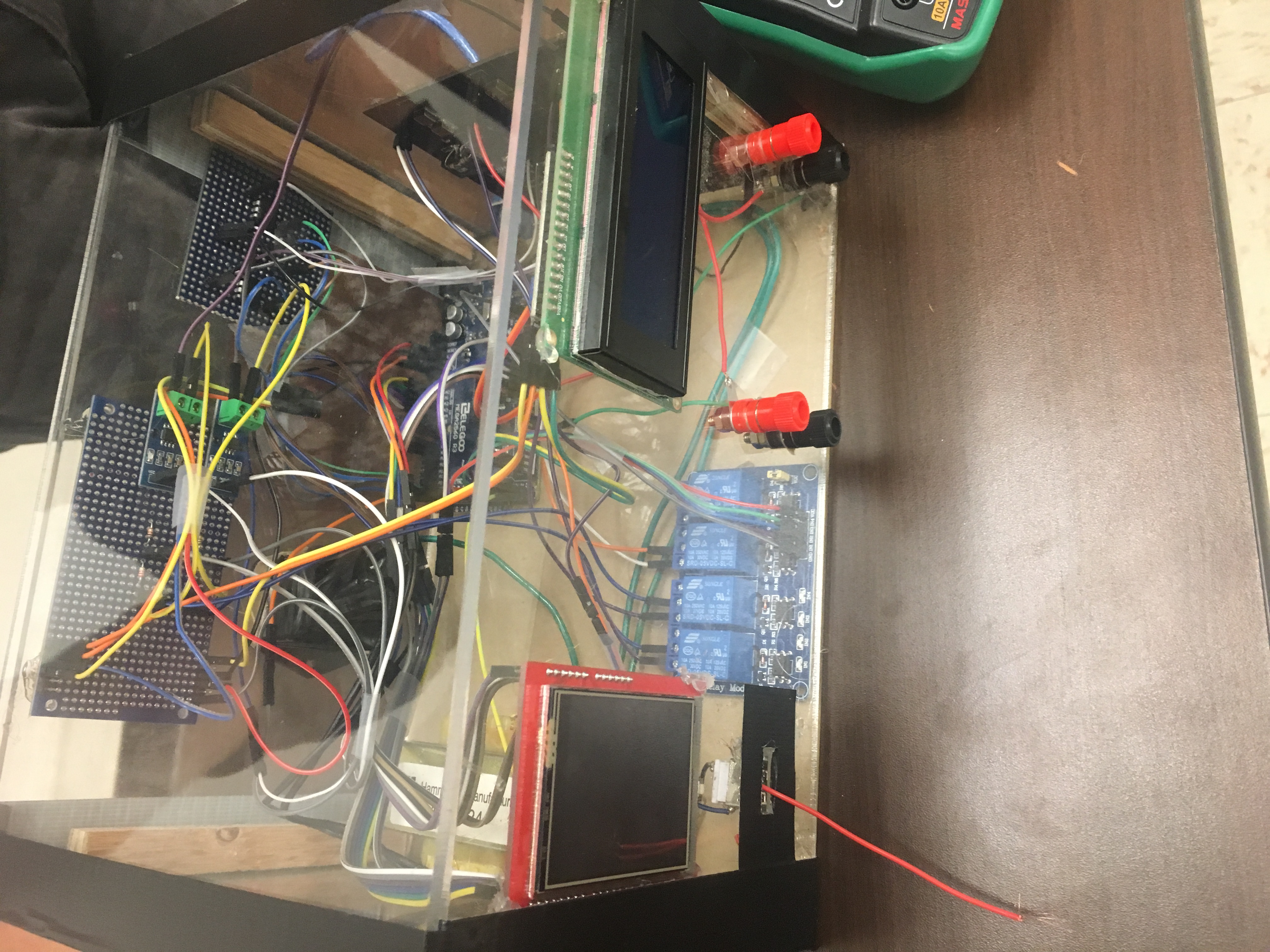

Enclosure The enclosure of the power supply   Link
Schematic AC to DC buck converter   Link
Schematic Sensors   Link
