P.U.M.P.

Spring 2025

The outdoors industry has grown at a massive rate in recent years, which also includes water purification products like ‘LifeStraw’ or ‘Sawyer Squeeze’. While these products have made water purification on the go extremely accessible, when attempting to process larger quantities of water, it becomes more difficult and time consuming. For those traveling with families or larger groups this issue is amplified. We want to solve this problem with the PUMP. The PUMP is a portable water purifier that can purify up to 1L of water at a time. Furthermore, our electronically powered purifier can be charged via any 12v supply including a car's electrical system allowing for off the grid applications. This allows users to access clean water despite being away from electrical infrastructure for many days at a time. In addition, our system provides users with water quality information to which provides users with ease of mind. We believe this product will greatly benefit the camping and road trip community while also providing temporary relief in emergency situations.

0 Lifts

Artifacts

Name Description

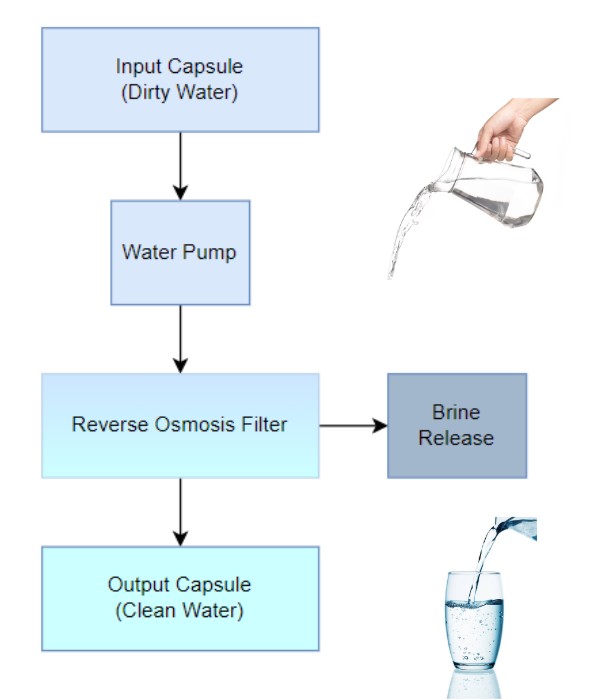

Water Filtration Diagram This image lays out the path the water takes as the PUMP filters it. The color of each block is correlated to the cleanliness of the water at that part.   Download

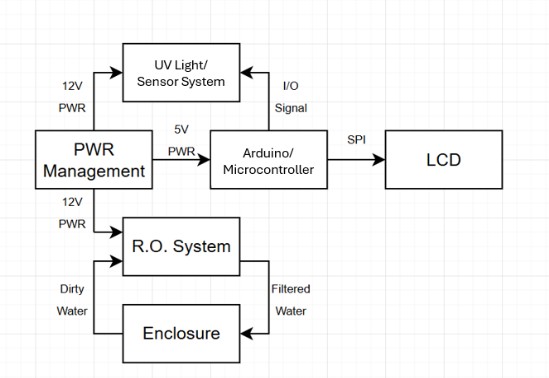

System Block Diagram This block diagram shows each component of the system and how they interface with each other. This block diagram was used to construct the final product.   Download
Power Board Design Files KiCad Files for power regulation board. Regulates power for both 12v and 5v systems given a 12-14v input.   Link
Electrical Conductivity Board Design Files These are the files of the electrical conductivity signal processing board that gets EC data as well as connects the VCNL4010 through I2C.   Link
Bill of Materials Information on the components used to build the PUMP including price, distributor, description, part number, and quantity.   Link
Arduino Code Arduino code for the PUMP. Uses I2C [1] for communication between its peripherals, Code waits for button press before entering its operation routine, then goes back to idle after finishing   Link
Verification Videos Videos used to prove system functionality in 2nd system verification   Link
Project Showcase Video Video talking about and demonstrating the P.U.M.P.   Link
Project Document Documentation for the P.U.M.P. throughout the project's development   Link
